China Construction Machinery Manufacturer CLW 8 Tonne Mounted Telescopic Boom Truck Mobile Crane TruckTruck crane ,also called boom truck crane,mobile truck crane , truck mounted crane , hydraulic folding truck crane,telescopic straight boom crane,truck with crane , crane lorry,hydraulic arm crane for trucks,pickup truck mounted crane,light truck with crane,folding arm hydraulic lift platform,hydraulic crane telescopic boom,mobile crane price ,self loader truck with boom crane,new forland lorry truck mounted crane,telescopic boom truck mounted crane,flatbed knuckle boom truck crane,6 wheelers truck with crane boom truck cranes sale etc
A crane mounted on a truck carrier provides the mobility for this type of crane. This crane has
two parts: the carrier, often referred to as the Lower, and the lifting component which includes the
boom, referred to as the Upper. These are mated together through a turntable, allowing the upper
to swing from side to side. These modern hydraulic truck cranes are usually single-engine machines, with the same engine powering the undercarriage and the crane. The upper is
usually powered via hydraulics run through the turntable from the pump mounted on the lower. In
older model designs of hydraulic truck cranes, there were two engines. One in the lower pulled the
crane down the road and ran a hydraulic pump for the outriggers and jacks. The one in the upper ran
the upper through a hydraulic pump of its own. Many older operators favor the two-engine system
due to leaking seals in the turntable of aging newer design cranes.
Technical date :
| Product name | CLW truck with 12 ton stiff boom crane | Max Speed | 89km/h | Crane | 12/14/16 ton stiff boom crane |
| Chassis Brand | Shacman | Axles | 3 | Arms sections | 4-5 |
| Rated loading weight | 15000KG | Engine Brand | Weichai | Max lifting capacity | 16 ton |
| Curb weight | 19000KG | Horse Power | 340hp | Max lifting height | 21.5m |
| Dimensions | 12000x2450x3560mm | Emissions | 2088ml | Max working radius | 19.5m |
| Cargo body dimension | 800x2300x550mm | Cab | one and half row | Operation pressure | 30mpa |
| Wheelbase | 5000mm | Tire | 10+1 | Deadweight of crane | 4600kg |
Drive type | 6x4 LHD/RHD | Gross weight | 25000kg | Rotation angle | 360 full rotation |
Chassic :
CNHTC , Beiben trucks , Shacman trucks , FAW trucks , I SUZU ,Hongyan trucks,FOTON trucks , Dongfeng trucks , JAC trucks

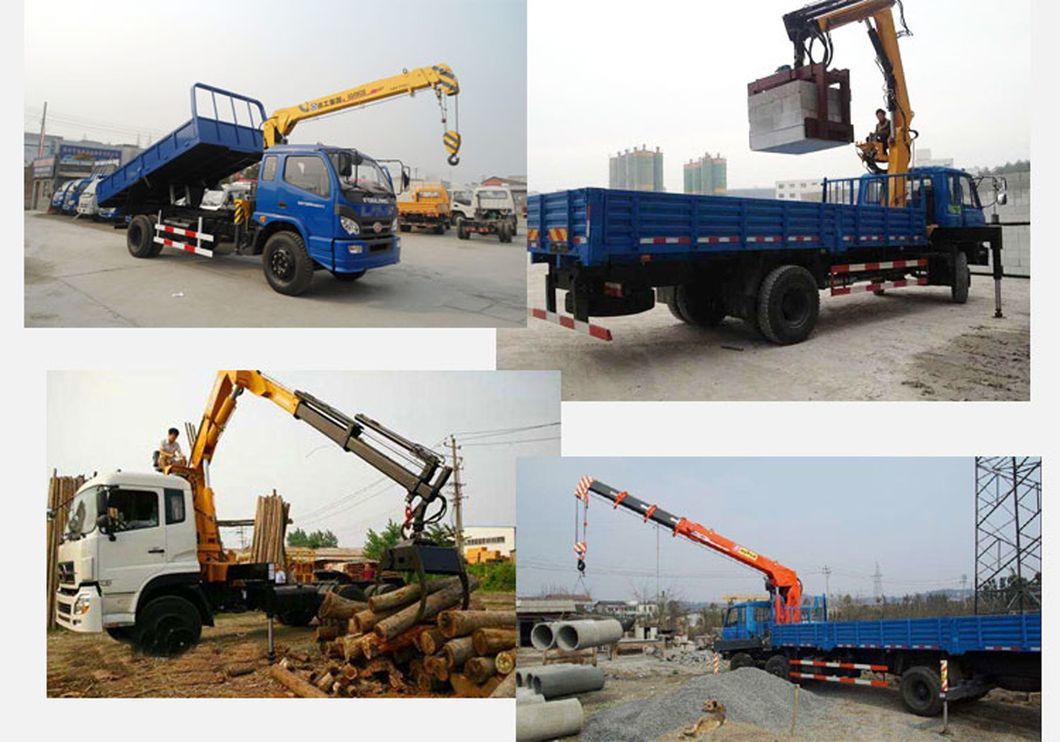

For general cargo lifting and other special things like timber and brick by changing other equipment.
Details :
Established in Sep. 2004,Chengli Special Automobile Co., Ltd is an important branch of CLW group with registered capital 100,000,000 RMB(14
millions US Dollars) and total capital 6,000,000,000(840 millions US Dollars).
Overseas Market
Trucks from Chengli Special Automobile Co., Ltd have been sold to more than 29 provinces in China and more than 80 overseas countries and regions in
Asia, Africa, South America, middle east and so on, such as Russia, Mongolia, Philippines, Vietnam, Cambodia, Myanmar, Laos, Kazakhstan, Uzbekistan,
Kyrghzstan, Tanzania, Zambia, Nigeria, Australia, Chile, Bolivia, Ethiopia, Sudan, Malaysia, Congo, El Salvador, Iraq, New Zealand, Chile, Bolivia, Argentina and also truck body for client drawing
